Solid State High Frequency Welder Cooling System

Solid State High Frequency Welder Cooling System including two types, one is water-water and the other is air-water.

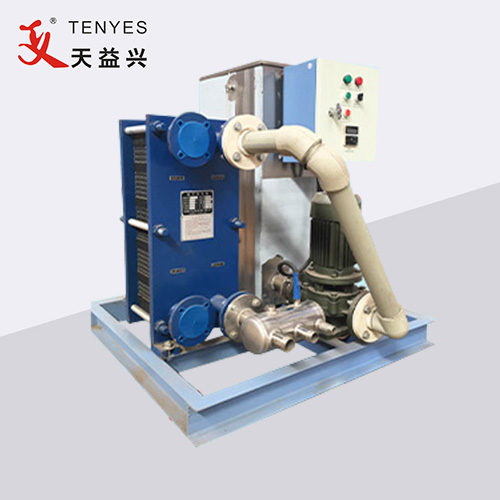

1. Water-water cooling system

TENYES water-water cooling system is a new, high-efficiency and energy-saving heat exchange equipment. Not only heat transfer High efficiency, sensitive temperature control, small heat loss, and compact structure, small footprint, safe and reliable. It is easy to install and clean, and has a long service life.

Water-to-water cooling systems are widely used in circulating water cooling of various types of induction heating equipment, especially for cooling Water towers and pools are the most suitable for enterprises (for single and multiple water-to-water cooling systems) and are ideal Liquid-liquid cooling and heat exchange equipment.

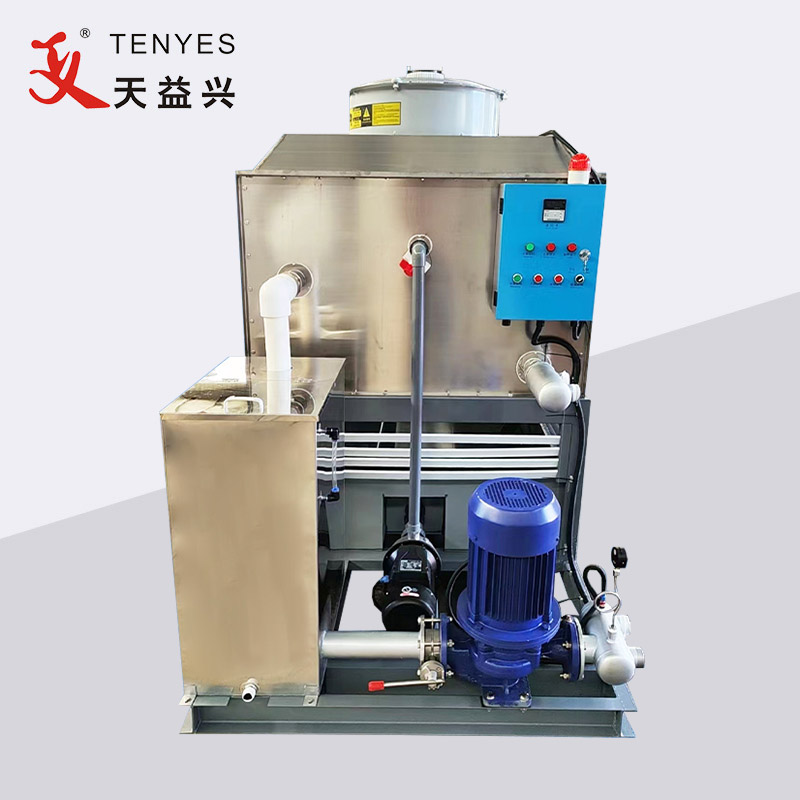

2. Air-water cooling system

With the national policy of energy conservation, emission reduction and environmental protection and the rapid development of the domestic welded pipe industry, energy saving is the key to every welded pipe the primary consideration of manufacturers. On the basis of many years of production of high-frequency induction heating equipment and speed control equipment, our factory TENYES has also produced high-frequency induction heating equipment and speed regulating equipment a new, efficient and energy-saving cooling equipment supporting high-frequency and medium-frequency induction heating equipment has been developed - evaporation type Air-water cooling system.

TENYES Solid State High Frequency Welder Cooling System Feature And Application

water-water cooling system Scope of application

1. High-frequency induction heating power supply, intermediate frequency/ultra-audio induction heating power supply, induction heating complete sets of equipment, whole Flow equipment, die-casting machines, injection molding machines, etc.

2. Quenching liquid cooling.

3. Other equipment that needs to be cooled by water.

4. Various non-standard products can be designed according to user requirements.

water-water cooling system Features

The water-water cooling system consists of a BR plate heat ex-changer, a pipeline pump, a soft water tank, and a water collection device, electronic control system and other parts.

The water-water cooling system consists of two fluids with different temperatures (external and internal circulating water) Indirect heat exchange is carried out through the heat ex-changer plate wall to achieve the purpose of cooling. The cooling effect depends on the temperature of the water circulating inside and outside Differential and plate heat ex-changer area.

Air-water cooling system Scope of application

1. High-frequency induction heating power supply, intermediate frequency/ultra-audio induction heating power supply, induction heating complete equipment, rectifier equipment, diathermy equipment, melting solder mask machine, die-casting machine, injection molding machine, etc.

2. Quenching machine tool cooling.

3. Other equipment that needs to be cooled by water.

4. Various non-standard products can be designed according to user requirements.

Second, the characteristics of the equipment

Air-water cooling system Features

1. Energy saving: low investment, small size, compact structure, easy installation, easy to relocate, no need to dig a pool and Investments in the construction of cooling towers.

2. Water saving: Compared with the water-cooled cooler with direct water supply, the water saving is about 95%.

3. Power saving: Compared with compressor refrigeration and other cooling methods, power saving is more than 90%.

4. The system adopts a soft water closed circulation process, which does not scale and does not block the pipeline.

5. The internal heat dissipation condenser assembly adopts high-quality copper fluorescent tube, which has high heat dissipation efficiency.

6. Air-cooled, spray water composite cooling, the best cooling effect, can ensure that tubes, thyristors, capacitors, Critical components such as reactors, induction coils, etc., will not be damaged by excessive water temperature, thus extending the service life of the equipment.
