Solid State High Frequency Welder Circuit Boards

TENYES solid state high frequency welder mainly used for pipe welding. The whole set of welder comprises of rectifying cabinet, inverter cabinet(slot cabinet), circulating cooling system for soft water, center control console, output busbar, induction/contact welding system, and so on.

Rectifier and inverter cabinet parts assembled many kinds of circuit boards, different circuit boards have different functions, and together other components to keep welder running well. Although we supply good design and use good quality components,during welder running will damage some Solid State High Frequency Welder circuit boards because of different reasons.

So our company supply many kinds of circuit boards to customers, and when change new boards can keep welder running normal.

The below-mentioned boards are some main circuit boards, if customer have any questions for welder circuit boards, please contact to us!

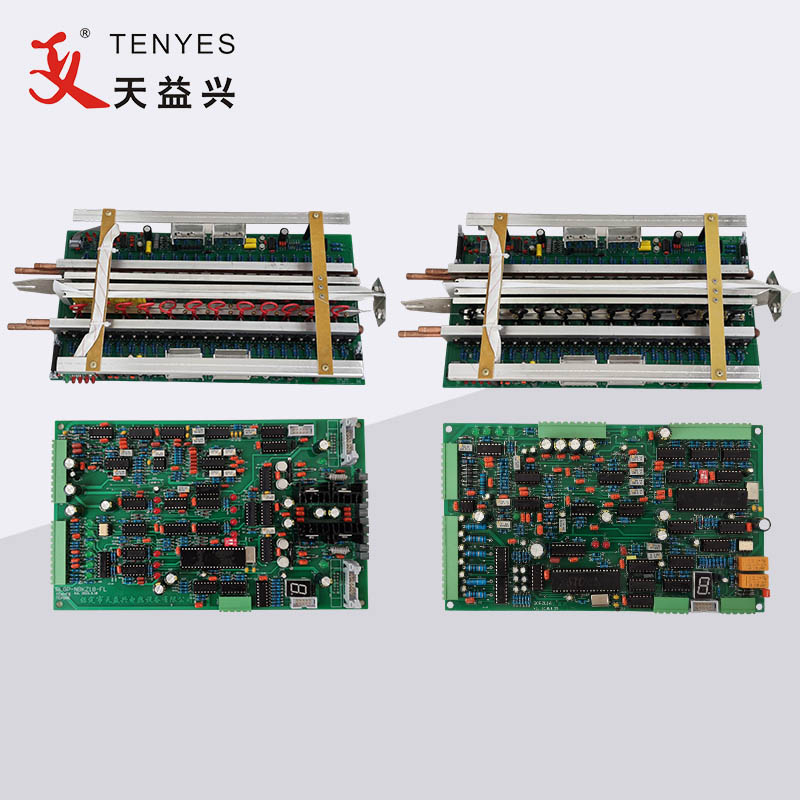

MOSFET power mould board（positive）

MOSFET power mould board（negative）

rectifier board

digital control board

inverter control board

power detection board

inverter power source board

4-power distribution board

6-power distribution board

pulse distribution board

drive board

15V power source board

console board

field control board

speed adjustment board

resistance-capacitance absorbing board

Filter board

signal feedback board
