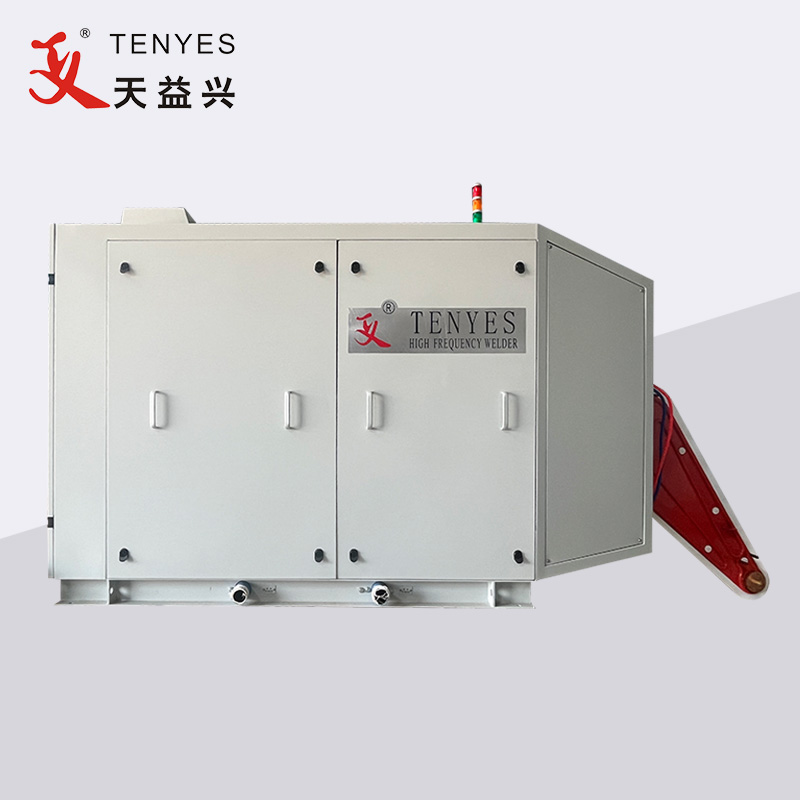

New Design Solid State High Frequency Compact Pipe Welder

TENYES new design solid state high frequency compact pipe welder is our more suitable design welder.The main cabinet integrated rectifier and inverter function, and inside all-in-one/compact welder structure design more reasonable.Its main feature is that uses IGBT and core transformer to replace the original thyristor and iron core rectifier transformer, and have advantages such as: more higher power factor larger than 0.95, and small size,light weight and cables connection more easy, debugging and maintenance more convenient.

Send Inquiry

Product Description

Normally the whole set equipment including: all-in-one/compact welder, console,water-water cooling system.

If customer want purchase DC driver or AC driver,also we can supply both kinds.

We will also support good after-sale service for install our welder and repair welder when have fault during the welder running.

New design solid state high frequency compact pipe welder Requirements of Using Environment:

This welder is designed for interior installation. It should avoid the rain, frost, snow, and sun exposure. It should meet the following conditions:

a): the altitude should be no more than 1000 meters, because high altitude will reduce air pressure and worsen the cooling effect,

b): environment temperature -5℃ - +40℃, (when the temperature is below 0℃, it is important to prevent the water pipe from freezing and breaking after the equipment stopped working)

c): The air relative humidity is no more than 85%,

d): no conductive explosive dust, no corrosive action on metals, and the failure of the insulation gas and steam,

e): No violent vibration and shock,

If the above requirements can not be met, it should be highlighted while ordering.

Comparison of compact welder and solid-state high-frequency welder

Compact welder	Solid-state high-frequency welder
High efficiency,and electricity saving by 15%-25% than the solid state welder	Relatively high-efficiency
Single cabinet design and easy installation	Separate cabinet design,and many incoming cables between cabinets
High power factor of up to 0.95,and no need of compensation equipment	Low power factor and need of compensation equipment
Stable output stability and better welded quality	Relatively good welded quality
Full modular design and easy maintenance	Semi-modelar design and relatively complicated maintenance
