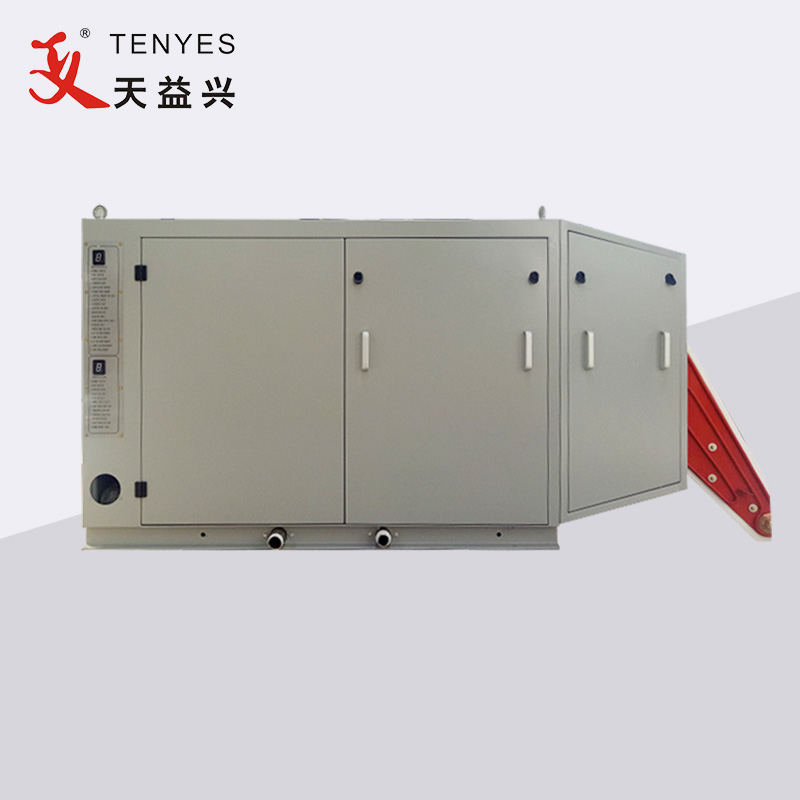

200KW Solid State High Frequency Compact Pipe Welder

As known in China, TENYES is a trusted partner for businesses and seeking reliable, efficient, and high-quality welding equipment. With rich experience and expertise, TENYES has established itself as a leading manufacturer and supplier of welding equipment, including 200KW Solid State High Frequency Compact Pipe Welder and catering to the needs of clients both domestic and overseas. The 200KW Solid State High Frequency Compact Pipe Welder is energy efficient and eco-friendly, with power savings of over 5% when compared to conventional high-frequency welder, thanks to its high power factor of up to 0.94. Its shorter connecting cables and without a step-down transformer enable this welder to conserve energy while reducing the cable losses.

Send Inquiry

Product Description

Export to Thailand 200KW Solid State High Frequency Compact Pipe Welder

Technical Parameters

Rated Output power: 200KW

Welding mode: induction type

Rated DC voltage: 240V

Rated DC current: 1000A

Rated frequency: 400KHZ

The whole efficiency: η≥90%

Power supply voltage: 3-phase 380V/50Hz (equipment could work at the voltage 380V±5%)

Power distribution capacity: ≥240kVA

Power factor: ≥0.9

Power supply cable: each phase of plastic-covered copper cable ≥120mm², ground wire≥50mm²

Supply list

Description	Composition / Model	Qty.
200KW Solid State High Frequency Compact Pipe Welder	Compact main cabinet	1
	console	1
	Air conditioner	1
	Water-water cooling system	1
