60KW High Frequency Pipe Welding Machine

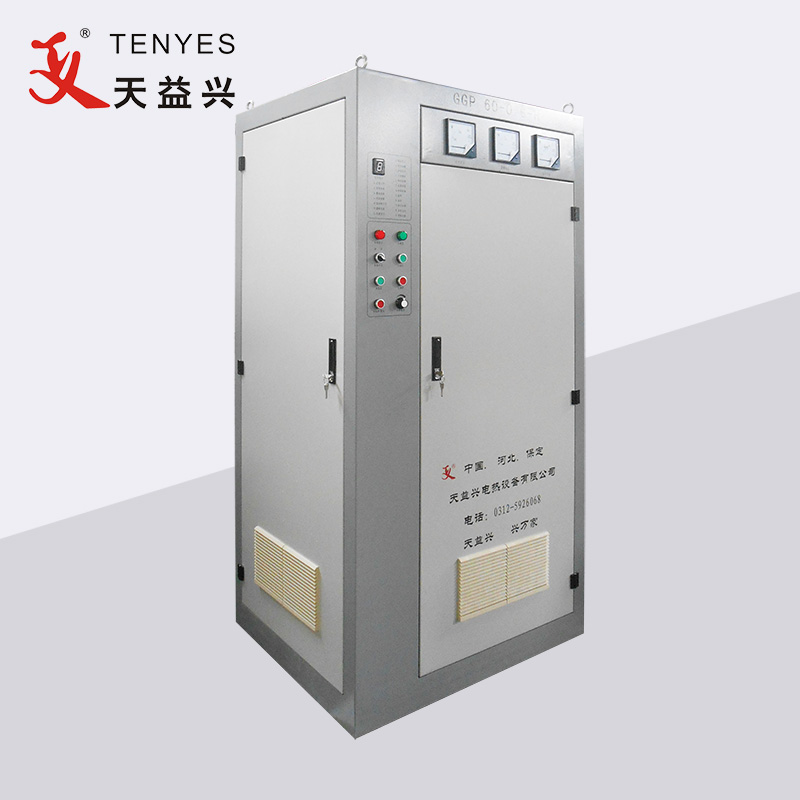

TENYES 60KW High frequency pipe welding machine is designed for straight seam induction welding of steel pipe/tube. The whole set of welder comprises of rectifying cabinet, inverter cabinet(slot cabinet), circulating cooling system for soft water, center control console, output busbar, induction/contact welding system, and so on. The solid-state high frequency welding machine is designed according to continuous operations.

Send Inquiry

Product Description

Inverter output cabinet providing steel tube welding high frequency power supply, IRFP460 and the fast recovery diode (FRD) DSEI60-06P of American IR corporation and Germany IXYS corporation are used to form electricity converter as the main power device. The single layer power module output power is more than 50KW, adopting 2 layers power module (contrast to 100KW) in parallel to the whole machine. The rated working frequency is 450 KHZ. The maximum output power of the entire machine can reach 100KW. The same power modules have interchangeability.

Technical Parameters

Rated Output power: 60kW

Welding mode: induction type

Rated DC voltage: 250V

Rated DC current: 250A

Rated frequency: 450KHZ

The whole efficiency: η≥85%

Power supply voltage: 3-phase 380V/50Hz (equipment could work at the voltage 380V±5%)

Power distribution capacity: ≥65kVA

Power factor: ≥0.85

Power supply cable: each phase of plastic-covered copper cable ≥70mm², ground wire≥20mm²

Supply list

Description	Composition / Model	Qty.
60KW High frequency pipe welding machine	Rectifier cabinet	1
	Inverter cabinet	1
	console	1
	Transformer	1
	Water-water cooling system	1
