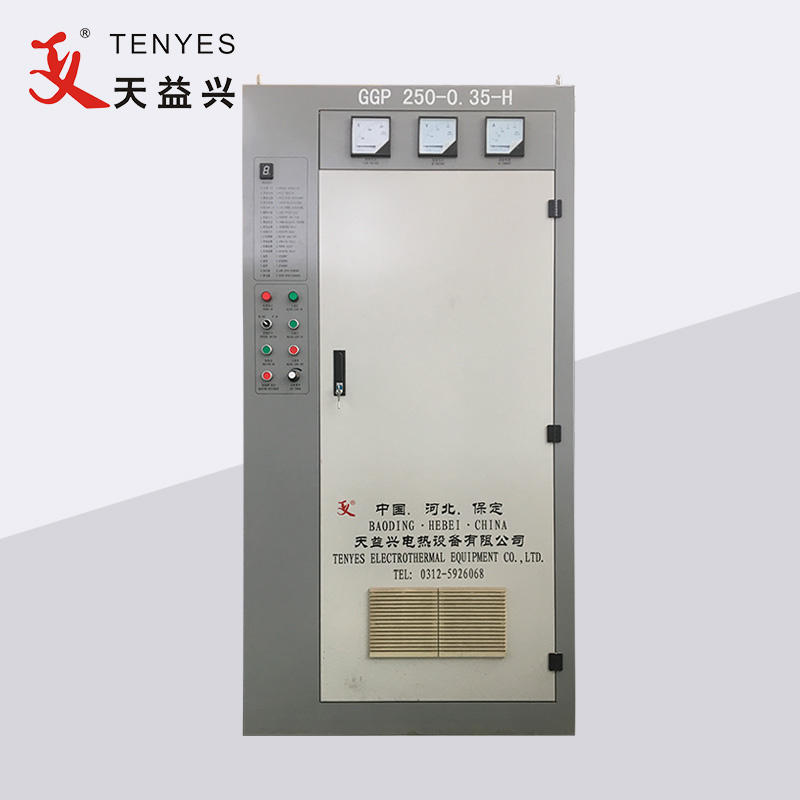

250KW High Frequency Pipe Welding Machine

The 200KW High Frequency Pipe Welding Machine by TENYES is an mature pipe welding equipment that is perfect for clients who seeking a reliable, efficient, and durable welding machine. TENYES have rich experience in manufacturing solid state high frequency pipe welding machine.The 250KW High Frequency Pipe Welding Machine cables connection is easy and simple. There are less than ten control cables between the rectifier cabinet and the inverter cabinet, and they are randomly configured. There is also very few cables between the rectifier power supply and the console operator station.

Send Inquiry

Product Description

Export to Tanzania 250KW solid state high Frequency pipe welding machine from TENYES

Technical Parameters of 250KW High Frequency Pipe Welding Machine

Rated Output power: 250kW

Welding mode: induction type

Rated DC voltage: 240V

Rated DC current: 1250A

Rated frequency: 300KHZ

The whole efficiency: η≥85%

Power supply voltage: 3-phase 380V/50Hz (equipment could work at the voltage 380V±5%)

Power distribution capacity: ≥300kVA

Power factor: ≥0.85

Power supply cable: each phase of plastic-covered copper cable ≥250mm², ground wire≥120mm²

Supply list

Description	Composition / Model	Qty.
250KW High frequency pipe welding machine	Rectifier cabinet	1
	Inverter cabinet	1
	console	1
	Transformer	1
	Water-water cooling system	1
