TENYES is a professional China High frequency pipe welding machine Suppliers and China High frequency pipe welding machine factory. The High frequency pipe welding machine is mainly used for welding various types of longitudinal steel pipes such as low carbon steel, high-strength steel, alloy steel, etc. And is specially designed for straight seam pipe welding.
This TENYES High frequency pipe welding machine is mainly consists of a transformer, rectifier cabinet, and inverter cabinet. Ordinary three-phase AC power (line voltage 380V, frequency 50HZ) is reduced by a transformer (line voltage 200V, frequency 50HZ), enters the rectifier cabinet, undergoes rectification, voltage regulation, and filtering, and becomes continuously adjustable DC power from 0 to 240V; Entering the inverter bridge again (using high-power transistor MOSFET), it becomes high-frequency current, which can be supplied to the load slot for induction heating. Our equipment are popular in domestic market, some equipment are exported to Southeast Asia, Western Europe, Middle East countries, African countries, West Asia, South America, Russia and so on.

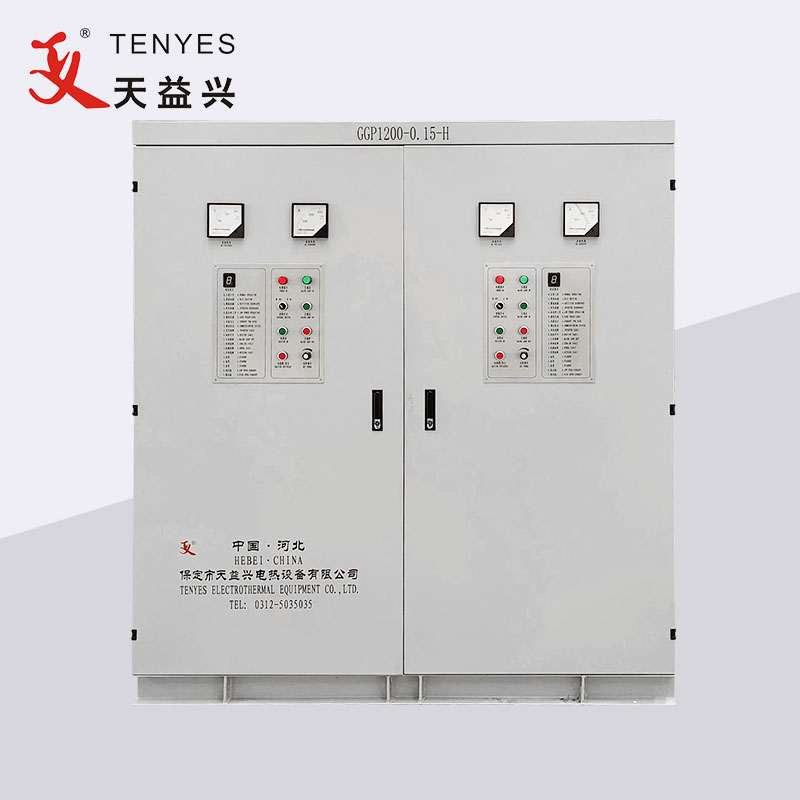

TENYES 1200KW High frequency pipe welding machine mainly consist of step-down oil transformer,rectifier cabinet,inverter cabinet,console,cooling system,bracket for support inverter cabinet, sometimes also matched with DC driver according to customer’s requirements.
