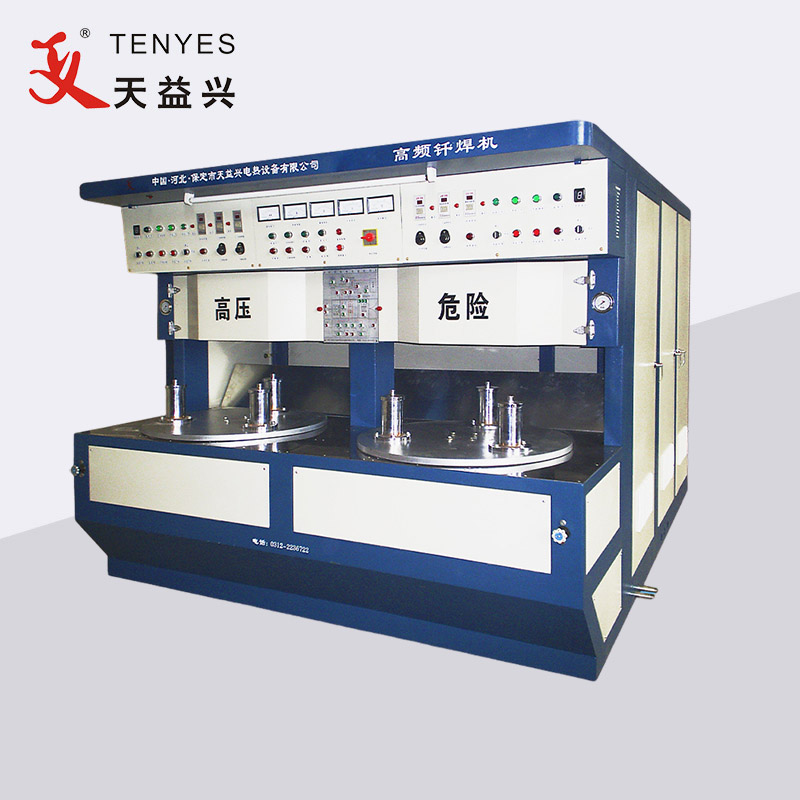

60KW Vacuum Tube Cookware Bottom Brazing Machine

TENYES 60KW Vacuum Tube Cookware Bottom Brazing Machine Introduction

This equipment mainly includes the following parts:

high frequency electric source, including three-phase alternating-current pressure regulating system, set-up transformer, high-voltage rectifier, filament voltage stabilizer, electronic tube, resonance capacitance, right left two-way knife switch, tank capacitance, inductor (large mould).

mechanical slewing mechanism, including three-phase alternating-current asynchronous dynamo (with arresting gear), reductor, graduator, turntable, etc.

hydraulic elevator mechanism, including hydraulic equipment (with electrical machinery, liquid pump, magnetic valve, etc.), liquid jar.

water-cooling system, including heat exchanger, water pump, generator, water knockout drum, water tank, water-thermometer, hydraulic meter, etc.

microcomputer control system, including microcomputer board, electric relay, etc.

High frequency brazing machine, mainly used for all kinds of pot, tea kettle bottom welding.we have two collections for option

1.vacuum tube brazing machine

2.MOS welding and brazing

The difference between the two is as following:

1.welding quality: the comparison shows that the solid state high frequency welding of the work piece heat evenly, smooth surface.

2.Energy: the test showed that compared with the specifications of the equipment tube equipment saving more the 30%.

3.Water: their losses due to the small, does not require much cooling water, so water less than the same size tube equipment for more than 50%.

4.Light weight: as the main power device (MOSFET)is small, there is no such device filament voltage regulator, matching coil, the gate circuits.

5.Easy to operate: namely,that the use, said the government stop.both without preheating tube, do not continue after cooling down.

6.The use of safe and reliable: the technology is mature and stable, reliable operation, as a result of lower tube voltage ratio, difficult personnel casualties occurred.

7.Independent research and PWM control technology to reduce production costs.
